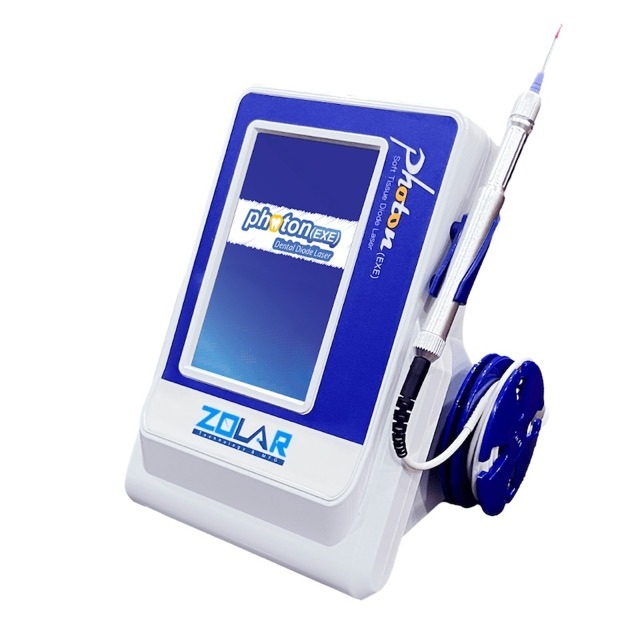

Photon EXE Dental Diode Laser
Photon EXE combines the precision of 810nm technology with an upgraded LBR timer and more than 25 presets and multiple customized programs with an interactive and modernized user interface, expansive LCD display, and improved battery performance.
Learn More Schedule Demo
Photon EXE Dental Diode Laser in Dentistry & Advanced Dental Technology in Canada
The “Photon EXE” Dental Diode Laser is a surgical device at the cutting edge of technology, designed for a wide variety of oral soft tissue procedures. It utilizes a solid-state diode as laser energy source. The energy is delivered to the operating area by means of a delivery system consisting of a flexible fiber connecting the laser source and the handpiece. The device is activated by means of a footswitch. This high-performance device is classified as Class 4 and operates at a wavelength of 810nm, delivering an output power of 3W. Its robust capabilities make it an ideal tool for a diverse range of surgical and Low-Level Laser Therapy (LLLT) applications.
- In surgical procedures, a 3-watt laser operating at 810nm proves invaluable for tasks necessitating exact tissue cutting or coagulation. This specific wavelength ensures pinpoint accuracy in tissue targeting while mitigating potential damage to adjacent areas.
- Low-Level Laser Therapy (LLLT), alternatively recognized as photo biomodulation, employs lower-intensity lasers to invigorate cellular functions. This stimulation fosters tissue healing, diminishes inflammation, and mitigates discomfort.
Features
Improved Precision
Improve control for intricate surgeries
Improve Accessibility
High Resolution 5 Inches Large Display

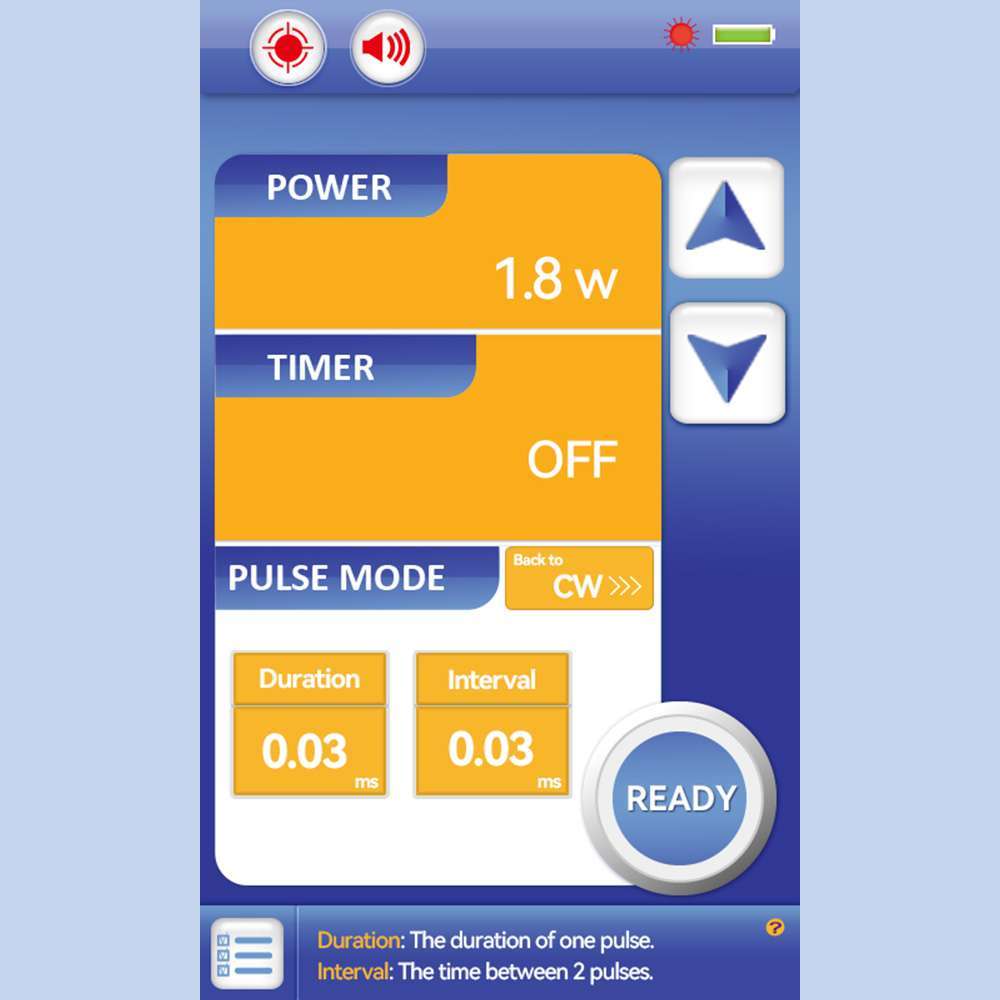

New Interface
User friendly Interface, Shorten the Treatment Time and Faster Healing
Additional Presets
Over 30 preset programs including multiple customized programs with an interactive and modernized user interface
Power and Wavelength
3 Watt and 810 nm
Preservation of Healthy Tissue
Remove diseased tissue and preserve healthy tissue
Precise and Accurate
Allow for precise tissue targeting, minimizing damage to surrounding areas
Reduced Risk of Infection
The high-energy beam sterilizes the area as it works, reducing the risk of post-operative infections
Applications
Applications of Photon EXE Dental Diode Laser Aesthetics & Surgery
Bone and Tooth-Related Procedures:
- Exposure of Unerupted Teeth
- Genioplasty
- Incision and Drainage of Abscess
- Crown Lengthening
- Implant Recovery
- Excisional in Incisional Biopsies
Soft Tissue Procedures:
- Fibroma Removal
- Gingival Incision
- Operculectomy
- Soft Tissue Crown Lengthening
- Oral Papillectomies
- Haptic Ulcer Treatment
Periodontal Procedures:
- Gingival Toughing
- Reduction Gingival Hypertrophy
- Gingival Bleeding Index
Dental Impressions and Procedures:
- Crown Impressions
Implant-related Procedures:
- Implant Recovery
Oral Lesion and Pathology:
- Leukoplakia
Miscellaneous:
- Vestibulopathy
- Exposure of Unerupted Teeth
- Fibroma Removal
- Gingival Toughing
- Crown Impressions
- Genioplasty
- Gingival Incision
- Implant Recovery
- Incision and Drainage of Abscess
- Operculectomy
- Reduction Gingival Hypertrophy
- Soft tissue Crown Lengthening
- Gingival Bleeding Index
- Excisional in Incisional Biopsies
- Vestibulopathy
- Leukoplakia
- Oral Papillectomies
- Crown Lengthening
- Implant Recovery
- Haptic Ulcer Treatment
- Fibroma Removal and more..
Technical Information
Frequency 2.4 GHz
| Dimension | 187(L) × 148(W) × 138(H) mm |
| Laser Type | Diode 810nm |
| Safety classes | 4 class of laser I type B class of electrical safety |
| Display | 5 inches Large Display |
| Power Range | 100mW to 3W |
| Operation mode | Continuous or Pulsed |
| Pulse duration | Start from 0.01ms to 9.9s |
| Pulse frequency | Regulated from 1 Hz to 5000Hz |
| Duty Cycle | Adjustable |
| Aiming Beam | 650nm 2mW |
| Audible Notification | Yes |
| Visual Notification | Yes |
| Power Requirements | AC 100-240V 50/60Hz |
| Battery | Rechargeable lithium polymer 2.6AH, 16.8V |
| Wireless Foot Pedal | Yes |
| NOHD | 2.0 meters from the distal end of the fiber |
| Warranty | 2 Years |
Our Packages
|
Product Number
|
Name
|
Description
|
|
1103101000
|
Photon Exe 3-Watt Package, Disposable Tips
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, Permanent Handpiece with 5 Disposable Tips, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103102000
|
Photon Exe 3-Watt Package, Cutting Fiber System
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, 400um Fiber, Metal Handpiece, Stripper, Cleaver, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103201000
|
Photon Exe 3-Watt Pain Therapy Package, Disposable Tips
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, Multi-use Handpiece with 5 Disposable Tips and Pain Therapy Tip, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103202000
|
Photon Exe 3-Watt Pain Therapy Package, Cutting Fiber System
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, 400um Fiber, Metal Handpiece, Stripper, Cleaver, Pain Therapy Handpiece, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
Improved Precision
Improve control for intricate surgeries
Improve Accessibility
High Resolution 5 Inches Large Display
New Interface
User friendly Interface, Shorten the Treatment Time and Faster Healing
Additional Presets
Over 30 preset programs including multiple customized programs with an interactive and modernized user interface
Power and Wavelength
3 Watt and 810 nm
Preservation of Healthy Tissue
Remove diseased tissue and preserve healthy tissue
Precise and Accurate
Allow for precise tissue targeting, minimizing damage to surrounding areas
Reduced Risk of Infection
The high-energy beam sterilizes the area as it works, reducing the risk of post-operative infections
Frequency 2.4 GHz
| Dimension | 187(L) × 148(W) × 138(H) mm |
| Laser Type | Diode 810nm |
| Safety classes | 4 class of laser I type B class of electrical safety |
| Display | 5 inches Large Display |
| Power Range | 100mW to 3W |
| Operation mode | Continuous or Pulsed |
| Pulse duration | Start from 0.01ms to 9.9s |
| Pulse frequency | Regulated from 1 Hz to 5000Hz |
| Duty Cycle | Adjustable |
| Aiming Beam | 650nm 2mW |
| Audible Notification | Yes |
| Visual Notification | Yes |
| Power Requirements | AC 100-240V 50/60Hz |
| Battery | Rechargeable lithium polymer 2.6AH, 16.8V |
| Wireless Foot Pedal | Yes |
| NOHD | 2.0 meters from the distal end of the fiber |
| Warranty | 2 Years |
Our Packages
|
Product Number
|
Name
|
Description
|
|
1103101000
|
Photon Exe 3-Watt Package, Disposable Tips
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, Permanent Handpiece with 5 Disposable Tips, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103102000
|
Photon Exe 3-Watt Package, Cutting Fiber System
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, 400um Fiber, Metal Handpiece, Stripper, Cleaver, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103201000
|
Photon Exe 3-Watt Pain Therapy Package, Disposable Tips
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, Multi-use Handpiece with 5 Disposable Tips and Pain Therapy Tip, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103202000
|
Photon Exe 3-Watt Pain Therapy Package, Cutting Fiber System
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, 400um Fiber, Metal Handpiece, Stripper, Cleaver, Pain Therapy Handpiece, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
Applications of Photon EXE Dental Diode Laser Aesthetics & Surgery
Bone and Tooth-Related Procedures:
- Exposure of Unerupted Teeth
- Genioplasty
- Incision and Drainage of Abscess
- Crown Lengthening
- Implant Recovery
- Excisional in Incisional Biopsies
Soft Tissue Procedures:
- Fibroma Removal
- Gingival Incision
- Operculectomy
- Soft Tissue Crown Lengthening
- Oral Papillectomies
- Haptic Ulcer Treatment
Periodontal Procedures:
- Gingival Toughing
- Reduction Gingival Hypertrophy
- Gingival Bleeding Index
Dental Impressions and Procedures:
- Crown Impressions
Implant-related Procedures:
- Implant Recovery
Oral Lesion and Pathology:
- Leukoplakia
Miscellaneous:
- Vestibulopathy
- Exposure of Unerupted Teeth
- Fibroma Removal
- Gingival Toughing
- Crown Impressions
- Genioplasty
- Gingival Incision
- Implant Recovery
- Incision and Drainage of Abscess
- Operculectomy
- Reduction Gingival Hypertrophy
- Soft tissue Crown Lengthening
- Gingival Bleeding Index
- Excisional in Incisional Biopsies
- Vestibulopathy
- Leukoplakia
- Oral Papillectomies
- Crown Lengthening
- Implant Recovery
- Haptic Ulcer Treatment
- Fibroma Removal and more..
Technical Informations
Frequency 2.4 GHz
| Dimension | 187(L) × 148(W) × 138(H) mm |
| Laser Type | Diode 810nm |
| Safety classes | 4 class of laser I type B class of electrical safety |
| Display | 5 inches Large Display |
| Power Range | 100mW to 3W |
| Operation mode | Continuous or Pulsed |
| Pulse duration | Start from 0.01ms to 9.9s |
| Pulse frequency | Regulated from 1 Hz to 5000Hz |
| Duty Cycle | Adjustable |
| Aiming Beam | 650nm 2mW |
| Audible Notification | Yes |
| Visual Notification | Yes |
| Power Requirements | AC 100-240V 50/60Hz |
| Battery | Rechargeable lithium polymer 2.6AH, 16.8V |
| Wireless Foot Pedal | Yes |
| NOHD | 2.0 meters from the distal end of the fiber |
| Warranty | 2 Years |
Our Packages
|
Product Number
|
Name
|
Description
|
|
1103101000
|
Photon Exe 3-Watt Package, Disposable Tips
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, Permanent Handpiece with 5 Disposable Tips, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103102000
|
Photon Exe 3-Watt Package, Cutting Fiber System
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, 400um Fiber, Metal Handpiece, Stripper, Cleaver, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103201000
|
Photon Exe 3-Watt Pain Therapy Package, Disposable Tips
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, Multi-use Handpiece with 5 Disposable Tips and Pain Therapy Tip, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
|
1103202000
|
Photon Exe 3-Watt Pain Therapy Package, Cutting Fiber System
|
INCLUDES: Photon Exe 3-watt, Wireless Foot Pedal, Spool, 400um Fiber, Metal Handpiece, Stripper, Cleaver, Pain Therapy Handpiece, Remote Interlock, Power Supply Charger, 3 Laser Safety Glasses, Initiate Sticker, Safety/Warning Sticker, Carrying Case, DVD, Manual.
|
Our Packages
|
Product No.
|
Name
|
|
1103101000
|
Photon EXE 3- Watt Package, Disposable Tips
|
|
1103102000
|
Photon EXE 3- Watt Package, Cutting Fiber System
|
|
1103201000
|
Photon EXE 3-Watt Pain Therapy Package, Disposable Tips
|
|
1103202000
|
Photon EXE 3-Watt Pain Therapy Package, Cutting Fiber System
|
